ISO9001-Amplus has been awarded with ISO9001 accreditation. The key to Amplus's success is reliabilty coupled with the highest quality of design, service and product with total commitment to every customer.


Selectable output type
Model: 0055A-H (40 Watt.)
¡ö

Design for a wide range of small power domestic equipment,Notebook

  computer,charger
¡ö

Multi changeable plug DC-cord or customer design DC-cord

¡ö

Universal AC input 100V to 240V,50Hz/60Hz.

¡ö

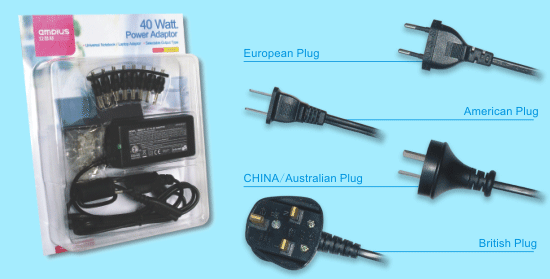

Universal AC input plug availble(BSI,USA,Europe,Aust,CHINA)

¡ö
15 selectable outputs:12V-24V MAX.2.5A.
¡ö
The multi selectable version can be set the output by a changable slot.
¡ö

Over load,over current,over heat protection.

¡ö

International approval IEC60950-1:2005, EN60950-1:2006+A11, UL60950-1

  :2003 (1st), CSA C22.2 No.60950-1
¡ö

EMC approval EN55022:2006+A1, EN61000-3-2:2006, EN61000-3-3:2008,

  EN55024:1998+A1+A2, FCC Part 15
¡ö
Extra low consumption.
¡ö

Weight:166g approximately.

¡ö

Small size:45.4x27.8x95.4mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

12V

13V
14V
15V
16V
17V
18V
18.5V

Max. output current

4A

3.5A
3.3A
3.2A
3.1A
2.8A
2.6A
2.5A

Rate output voltage

19V

19.5V
20V
21V
22V
23V
24V

Max. output current

1.9A

1.88A
1.85A
1.80A
1.75A
1.7A
1.65A
