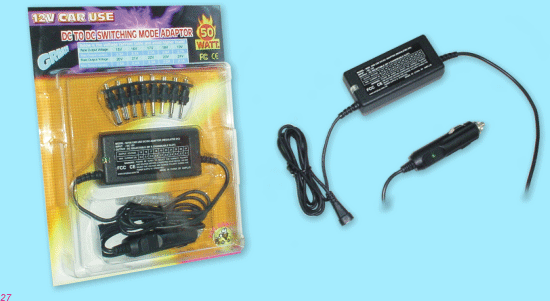

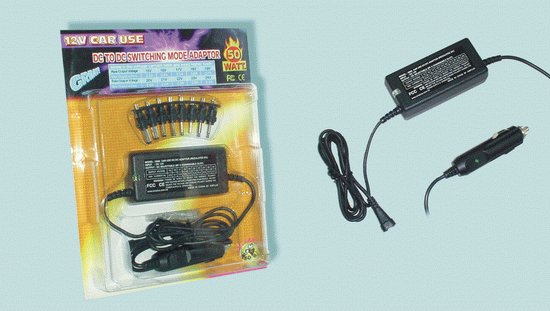

Model: 0060 (50 Watt.) STEP DOWN

Design for a wide range of domestic equipment,Notebook computer,at car

  use.

Multi changeable plug DC-cord.or customer design DC-cord.

DC input 12-24V.

10 selectable voltage outputs adapter from 3V-12V with output current MAX.3A
The output voltage can be set by a changeable slot.

Adapter is a switching DC to DC IC circuit step down design.

Over load,over current,over heat protection.

FCC part 15 approval.

High efficiency (85% typical)
Extra low consumption.

Weight:186g approximately.

Small size:45.4x27.8x95.4mm.





 Below is the voltage current table and avoid higher loads!

 Rate output voltage

3V

4V
5V
6V
7V
8V
9V
10V
11V

12V

 Max. output current

3A

3A
3A
3A
3A
3A
3A
2.8A
2.8A

2.8A
