Single output with changable plug type
Model: 04151A (20 Watt.)

Design for a wide range of small power domestic Equipment.

Multi changeable plug DC-cord or customer design DC-cord.

Universal AC input 100V to 240V,50Hz/60Hz.

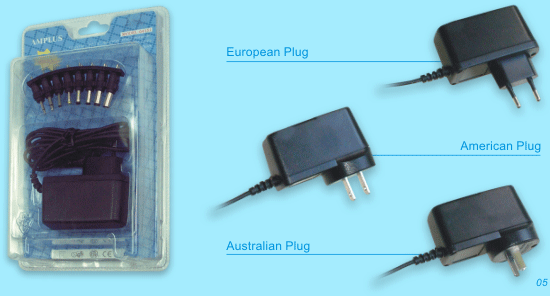

Universal AC input plug availble(USA,Europe,Aus,)

Over load,over current,over heat protection.

International approval IEC60950-1:2005, EN60950-1:2006+A11, UL60950-1

  :2003 (1st), CSA C22.2 No.60950-1

EMC approval EN55022:2006+A1, EN61000-3-2:2006, EN61000-3-3:2008,

  EN55024:1998+A1+A2, FCC Part 15

Weight:128g approximately.

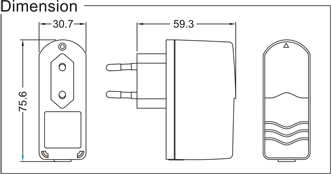

Small size:59.3x30.7x75.6mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

5V

6V
7V
8V
9V
10V
11V
12V
13V

14V

Max. output current

3A

2.5A
2.3A
2.1A
1.9A
1.7A
1.6A
1.5A
1.4A

1.3A

Rate output voltage
15V
16V
17V
18V
19V
20V
21V
22V
23V
24V

Max. output current

1.2A

1.13A
1.06A
1A
0.98A
0.94A
0.90A
0.88A
0.85A

0.83A
