| Single output type |
 |
|

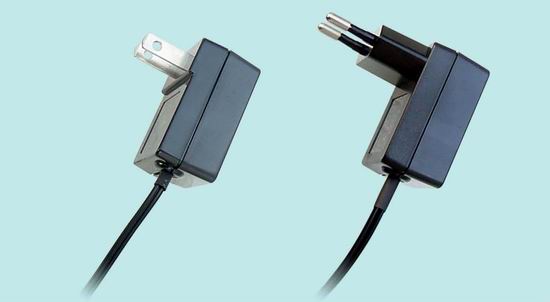

| Model: 05203 SERIES (2.5 Watt.) |
|
¡ö |
Design for a wide range of small power domestic Equipment. |
¡ö |
05203U AC input 120V,60Hz.05203V AC input 230V,50Hz. |
¡ö |
International approval CE EN60950-1,UL60950-1,CSA22.2 No.60950-1. |
¡ö |
Over load,over current,protection. |
|
¡ö |
EMC approval EN55022,FCC part 15. |
¡ö |
Weight:05203U=53g.05203V=57g.Approximately. |
¡ö |

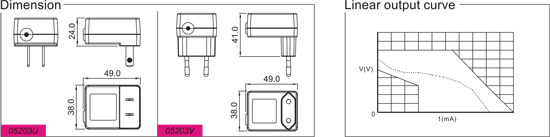

Small size:05203U=49x38x24mm. |
|
05203V=49x38x41mm. |
|
| |
|
| |
|
| |
MODEL |
DC OUTPUT |
|
|
|
|
|
|
|
|
05203U-030065 |
3V |
650mA |
|
|
|
|
|
|
|
|
05203U-030050 |
5V |
500mA |
|
|
|
|
|
|
|
|
05203U-030040 |
6V |
400mA |
|
|
|
|
|
|
|
|
05203U-075033 |
7.5V |
330mA |
|
|
|
|
|
|
|
|
05203U-090027 |
9V |
270mA |
|
|
|
|
|
|
|
|
05203U-120020 |
12V |
200mA |
|
|
|
|
|
|
|
|
05203V-030065 |
3V |
650mA |
|
|
|
|
|
|
|
|
05203V-050050 |
5V |
500mA |
|
|
|
|
|
|
|
|
05203V-060040 |
6V |
400mA |
|
|
|
|
|
|
|
|
05203V-075033 |
7.5V |
330mA |
|
|
|
|
|
|
|
|
05203V-030027 |
9V |
270mA |
|
|
|
|
|
|
|
|
05203V-120020 |
12V |
200mA |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
