Selectable output type
Model: /07226 (100 Watt.)
¡ö

Design for a wide range of domestic equipment,Notebook

  computer,Traveler equipment.
¡ö

Multi changeable plug DC-cord or customer design DC-cord.

¡ö

Universal AC input 100V to 240V,50Hz/60Hz.

¡ö

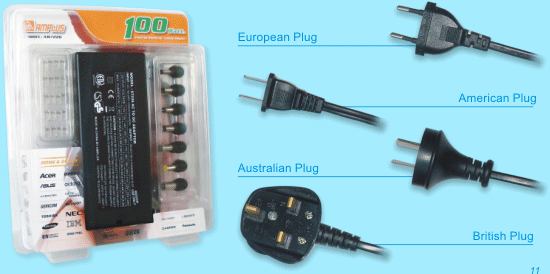

Universal AC input plug availble(USA,Europe,Aust,BSI).

¡ö 13 selectable outputs:12V-24V MAX.7.5A.
¡ö The multi selectable version can be set the output by a changable slot.
¡ö

Over load,over current,over heat protection.

¡ö

International approval CE EN60950

¡ö

EMC approval EN55011

¡ö Extra low consumption.
¡ö

Weight:905g approximately.

¡ö

Small size:167.0x74.0x47.0mm.





 Below is the voltage current table and avoid higher loads!

 Rate output voltage

12V

13V
14V
15V
16V
17V
18V

 Max. output current

7.5A

7A
6.5A
6.2A
5.9A
5.6A
5.3A
 Rate output voltage
19V
20V
21V
22V
23V
24V


 Max. output current

5.0A

4.8A
4.6A

4.4A

4.3A
4.2A
