Selectable output type
Model: 09257H (72 Watt.)

Design for a wide range of domestic equipment,Notebook computer,Traveler

  equipment.

Multi changeable plug DC-cord or customer design DC-cord

Universal AC input 100V to 240V,50Hz/60Hz.

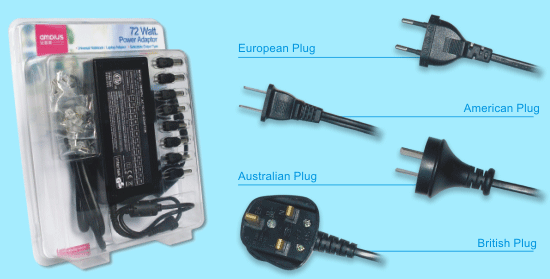

Universal AC input plug availble(BSI,USA,Europe,Aust)

15 selectable outputs:12V-24V MAX.5.0A.
The multi selectable version can be set the output by a changable slot.

Over load,over current,over heat protection.

International approval IEC60950-1:2005, EN60950-1:2006+A11, UL60950-1

  :2003 (1st), CSA C22.2 No.60950-1

EMC approval EN55022:2006+A1, EN61000-3-2:2006, EN61000-3-3:2008,

  EN55024:1998+A1+A2, FCC Part 15
Extra low consumption.

Weight:365g approximately.

Small size:133x65x20mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

12V

13V
14V
15V
16V
17V
18V
18.5V

Max. output current

5.0A

4.8A
4.7A
4.5A
4.3A
4.1A
3.9A
3.8A
Rate output voltage
19V
19.5V
20V
21V
22V
23V
24V

Max. output current

3.7A

3.6A
3.5A
3.35A
3.20A
3.10A
3.00A
