| Single output type |
 |
|
| Model: 09257 SERIES (72 Watt.) |
|
¡ö |
INPUT VOLTAGE:AC 100-240V |
¡ö |
WEIGHT:365g APPROXIMATELY |
|
¡ö |

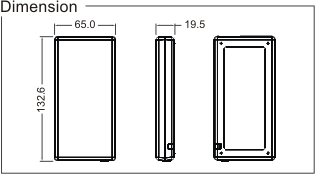

CASE SIZE: 133mm x 65mm x20mm |
|
|
| |
|
| |
MODEL |
DC OUTPUT |
|
|
|
|
|
|
|
|
|
09257-050520 |
5V |
5.20A |
|
|
|
|
|
|
|
|
|
09257-060520 |
6V |
5.20A |
|
|
|
|
|
|
|
|
|
09257-070520 |
7V |
5.20A |
|
|
|
|
|
|
|
|
|
09257-080520 |
8V |
5.20A |
|
|
|
|
|
|
|
|
|
09257-090520 |
9V |
5.00A |
|
|
|
|
|
|
|
|
|
09257-100500 |
10V |
5.00A |
|
|
|
|
|
|
|
|
|
09257-110500 |
11V |
5.00A |
|
|
|
|
|
|
|
|
|
09257-120500 |
12V |
5.00A |
|
|
|
|
|
|
|
|
|
09257-130480 |
13V |
4.80A |
|
|
|
|
|
|
|
|
|
09257-140470 |
14V |
4.70A |
|
|
|
|
|
|
|
|
|
09257-150450 |
15V |
4.50A |
|
|
|
|
|
|
|
|
|
09257-160430 |
16V |
4.30A |
|
|
|
|
|
|
|
|
|
09257-170410 |
17V |
4.10A |
|
|
|
|
|
|
|
|
|
09257-180390 |
18V |
3.90A |
|
|
|
|
|
|
|
|
|
09257-185380 |
18.5V |
3.80A |
|
|
|
|
|
|
|
|
|
09257-190370 |
19V |
3.70A |
|
|
|
|
|
|
|
|
|
09257-195360 |
19.5V |
3.60A |
|
|
|
|
|
|
|
|
|
09257-200350 |
20V |
3.50A |
|
|
|
|
|
|
|
|
|
09257-210335 |
21V |
3.35A |
|
|
|
|
|
|
|
|
|
09257-220320 |
22V |
3.20A |
|
|
|
|
|
|
|
|
|
09257-230310 |
23V |
3.10A |
|
|
|
|
|
|
|
|
|
09257-240300 |
24V |
3.00A |
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
