ISO9001-Amplus has been awarded with ISO9001 accreditation. The key to Amplus's success is reliabilty coupled with the highest quality of design, service and product with total commitment to every customer.


Selectable output type
Model: 0055A-L (30 Watt.)
¡ö

Design for a wide range of small power domestic equipment,Notebook

  computer,charger
¡ö

Multi changeable plug DC-cord or customer design DC-cord

¡ö

Universal AC input 100V to 240V,50Hz/60Hz.

¡ö

Universal AC input plug availble(BSI,USA,Europe,Aust,CHINA)

¡ö
8 selectable outputs:5V-12V MAX.4.0A.
¡ö
The multi selectable version can be set the output by a changable slot.
¡ö

Over load,over current,over heat protection.

¡ö

International approval IEC60950-1:2005, EN60950-1:2006+A11, UL60950-1

  :2003 (1st), CSA C22.2 No.60950-1
¡ö

EMC approval EN55022:2006+A1, EN61000-3-2:2006, EN61000-3-3:2008,

  EN55024:1998+A1+A2, FCC Part 15
¡ö
Extra low consumption.
¡ö

Weight:166g approximately.

¡ö

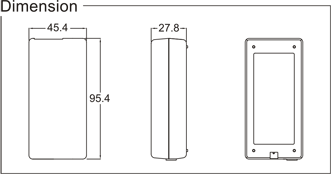

Small size:45.4x27.8x95.4mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

5V

6V
7V
8V
9V
10V
11V
12V

Max. output current

4A

3.5A
3.3A
3.2A
3.1A
2.8A
2.6A
2.5A
