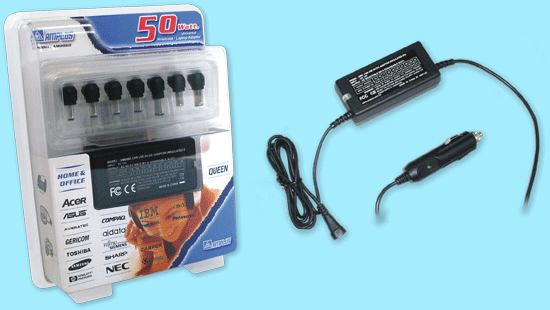

Model: 0060 (50 Watt.) STEP UP
¡ö

Design for a wide range of domestic equipment,Notebook computer,at car

  use.
¡ö

Multi changeable plug DC-cord.

¡ö

DC input 12V.

¡ö
10 selectable voltage outputs adapter from 15V-24V MAX.3.3A.
¡ö
The output voltage can be set by a changeable slot.
¡ö

Adapter is a switching DC to DC IC circuit stepup design.

¡ö

Over load,over current,over heat protection.

¡ö

FCC part 15 approval.

¡ö
Extra low consumption.
¡ö

Weight:186g approximately.

¡ö

Small size:45.4x27.8x95.4mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

15V

16V
17V
18V
19V
20V
21V
22V
23V

24V

Max. output current

3.3A

3.1A
3.0A
2.8A
2.7A
2.5A
2.4A
2.3A
2.2A

2.1A
