ISO9001-Amplus has been awarded with ISO9001 accreditation. The key to Amplus's success is reliabilty coupled with the highest quality of design, service and product with total commitment to every customer.


Selectable output type
Model: 9825A-H (14.4 Watt.)
¡ö

Design for a wide range of domestic equipment,portable TV,digital camcorder

¡ö

Multi changeable plug DC-cord.

¡ö

Universal AC input 100V to 240V,50Hz/60Hz.

¡ö

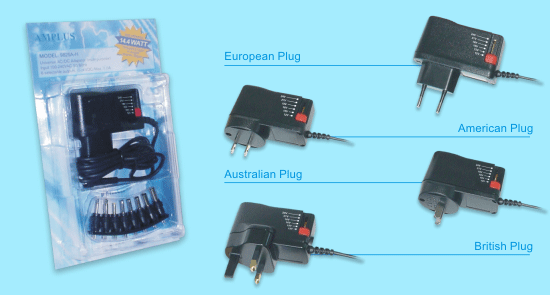

Universal AC input plug availble(BSI,USA,Europe,Aust)

¡ö

6 selectable outputs:12v-24v MAX.1000mA.

¡ö

Over load,over current,over heat protection.

¡ö

International approval IEC60950-1:2005, EN60950-1:2006+A11, UL60950-1

  :2003 (1st), CSA C22.2 No.60950-1
¡ö

EMC approval EN55022:2006+A1, EN61000-3-2:2006, EN61000-3-3:2008,

  EN55024:1998+A1+A2, FCC Part 15
¡ö

Extra low consumption during standby(about 8% of linear adaptor).

¡ö

Weight:86g approximately.

¡ö

Small size:59.3x30.7x75.6mm.





 Below is the voltage current table and avoid higher loads!

Rate output voltage

12V

15V
16V
18V
21V

24V

Max. output current at 220v

1.0A

0.85A
0.8A
0.75A
0.65A

0.6A
